Question

Solution Steps

1. Understand the question

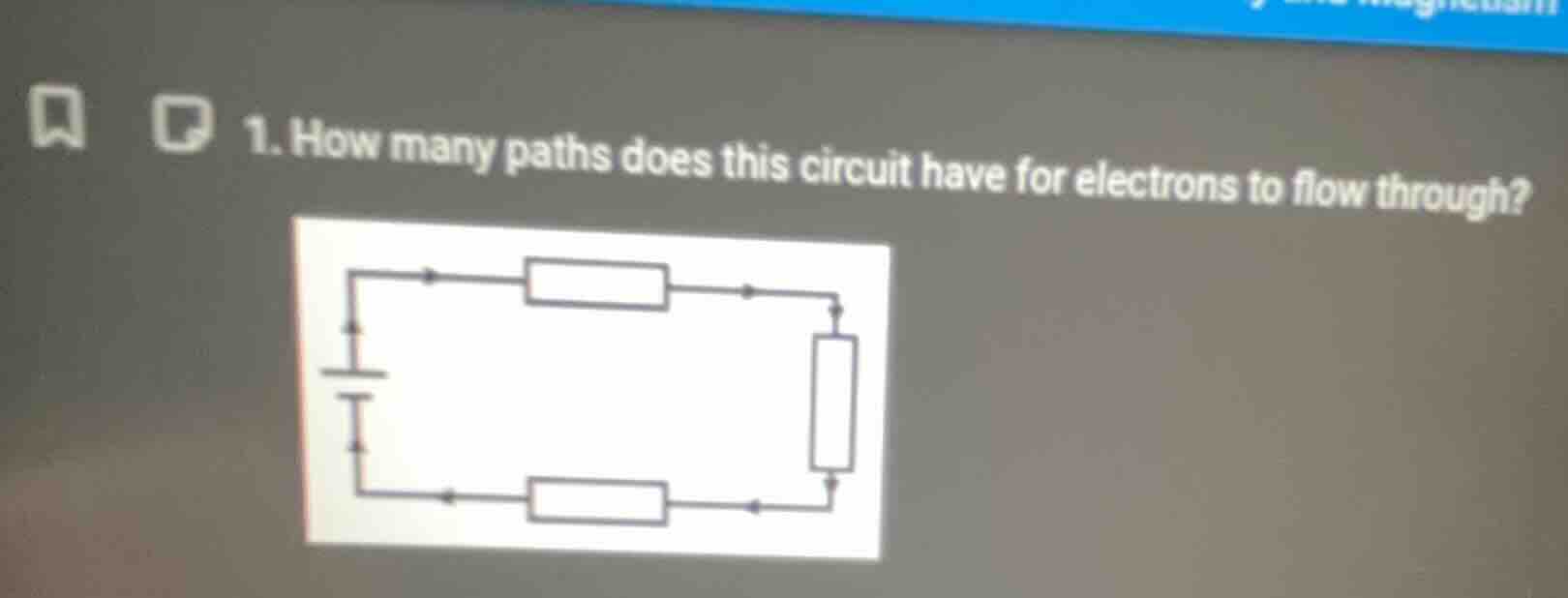

   1. how many paths does this circuit have for electrons to flow through?
2. Explanation

   Step1: Identify circuit type

   Observe the circuit layout: all components are connected end-to-end in a single continuous loop, with no branches that create separate routes for electron flow.

   Step2: Count electron flow paths

   In this single-loop configuration, electrons can only travel along one continuous path from the negative terminal of the power source, through all resistors, and back to the positive terminal.

3. Final answer

   1

Answer

Question Analysis

OCR Text

1. how many paths does this circuit have for electrons to flow through?
