1. Understand the question

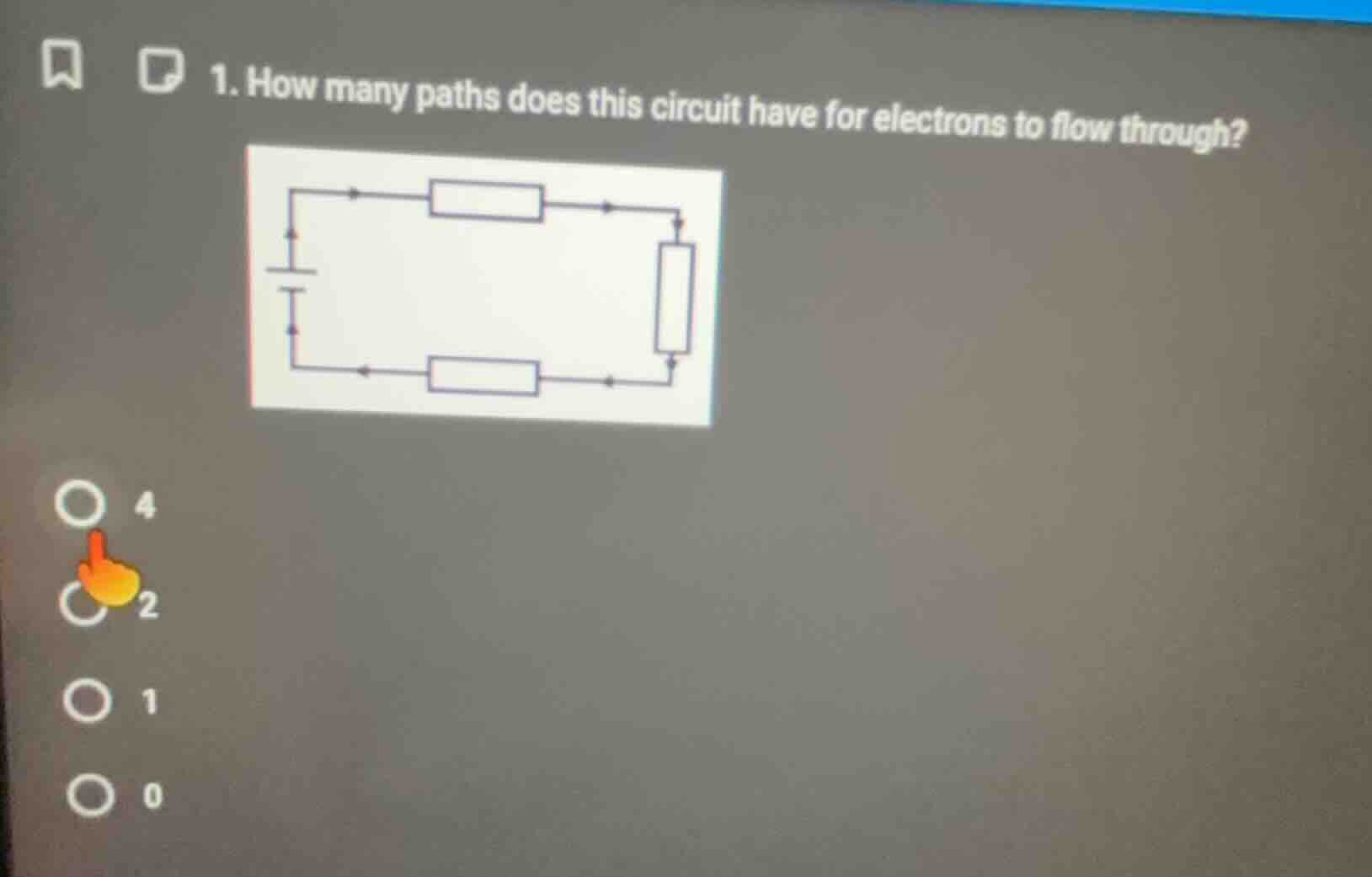

   1. how many paths does this circuit have for electrons to flow through?

   4
   2
   1
   0

2. Explanation

   Step1: Identify circuit type

   The circuit has two parallel branches from the battery, each with a resistor, that connect to a shared resistor at the end.

   Step2: Count electron paths

   1. Path 1: Battery negative → bottom resistor → right resistor → battery positive
   2. Path 2: Battery negative → top resistor → right resistor → battery positive
3. Final answer
   1. 2

Answer

Question Analysis

OCR Text

1. how many paths does this circuit have for electrons to flow through?
4
2
1
0
