Question

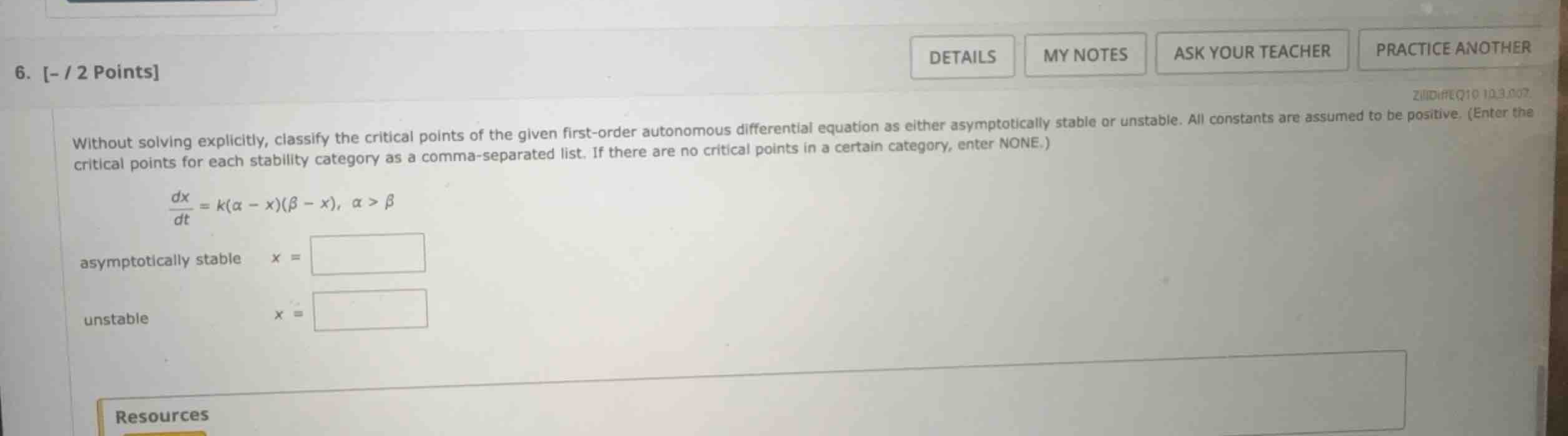

without solving explicitly, classify the critical points of the given first-order autonomous differential equation as either asymptotically stable or unstable. all constants are assumed to be positive. (enter the critical points for each stability category as a comma-separated list. if there are no critical points in a certain category, enter none.)

\\\frac{dx}{dt} = k(\alpha - x)(\beta - x), \quad \alpha > \beta\\

asymptotically stable \\(x =\\)

unstable \\(x =\\)

Explanation:

<pre_analysis>
{
"quality": "clear",
"question_count": 1,
"skills_matched": [
"step_cot",
"blank_filling_formatter",
"explain_then_answer",
"tutor",
"mastery_adaptive_brevity"
],
"needs_drawing": true,
"concepts_used": [
"Asymptotic Behavior of ODEs"
],
"new_concepts": [
"Autonomous Differential Equations",
"Stability of Critical Points",
"Phase Line Analysis"
],
"current_concepts": [
"Autonomous Differential Equations",
"Stability of Critical Points",
"Phase Line Analysis",
"Asymptotic Behavior of ODEs"
]
}
</pre_analysis>

<reasoning>

Identify critical points

Using the Asymptotic Behavior of ODEs knowledge point
\[

$$\begin{aligned} &f(x) = k(\alpha - x)(\beta - x) = 0 \\ &x = \alpha, \quad x = \beta \end{aligned}$$

\]

Compute derivative of the rate function

Using the Asymptotic Behavior of ODEs knowledge point
\[

$$\begin{aligned} &f(x) = k(x^2 - (\alpha + \beta)x + \alpha\beta) \\ &f'(x) = k(2x - (\alpha + \beta)) \end{aligned}$$

\]

Evaluate stability at critical points

Using the Asymptotic Behavior of ODEs knowledge point
\[

$$\begin{aligned} &f'(\alpha) = k(2\alpha - \alpha - \beta) = k(\alpha - \beta) > 0 \quad (\text{since } \alpha > \beta, k > 0) \\ &f'(\beta) = k(2\beta - \alpha - \beta) = k(\beta - \alpha) < 0 \quad (\text{since } \alpha > \beta, k > 0) \end{aligned}$$

\]

Classify stability

Using the Asymptotic Behavior of ODEs knowledge point
\[

$$\begin{aligned} &f'(\beta) < 0 \implies x = \beta \text{ is asymptotically stable} \\ &f'(\alpha) > 0 \implies x = \alpha \text{ is unstable} \end{aligned}$$

\]
</reasoning>

<answer>
Without solving explicitly, classify the critical points of the given first-order autonomous differential equation as either asymptotically stable or unstable. All constants are assumed to be positive.

\[\frac{dx}{dt} = k(\alpha - x)(\beta - x), \quad \alpha > \beta\]

asymptotically stable \(x =\) <blank>\(\beta\)</blank>

unstable \(x =\) <blank>\(\alpha\)</blank>
</answer>

<plot>
{
"elements": [
{
"type": "functiongraph",
"params": [
{
"js": "1 (4 - x) (1 - x)",
"latex": "f(x) = k(\alpha - x)(\beta - x)"
},
-1,
6
],
"properties": {
"strokeColor": "#8C55F2",
"strokeWidth": 2,
"name": "f(x)",
"withLabel": true
}
},
{
"type": "point",
"params": [[1, 0]],
"properties": {
"name": "\beta",
"size": 4,
"color": "#5583F2",
"withLabel": true
}
},
{
"type": "point",
"params": [[4, 0]],
"properties": {
"name": "\alpha",
"size": 4,
"color": "#F2557F",
"withLabel": true
}
},
{
"type": "arrow",
"params": [[0, 0], [0.8, 0]],
"properties": {
"strokeColor": "#55DDF2",
"strokeWidth": 2
}
},
{
"type": "arrow",
"params": [[2.5, 0], [1.2, 0]],
"properties": {
"strokeColor": "#55DDF2",
"strokeWidth": 2
}
},
{
"type": "arrow",
"params": [[4.5, 0], [5.5, 0]],
"properties": {
"strokeColor": "#55DDF2",
"strokeWidth": 2
}
}
],
"timestamps": [0.5, 1.0, 1.5]
}
</plot>

<post_analysis>
{
"subject": "Mathematics",
"question_type": "Fill-in-the-blank",
"knowledge_point": [
"Mathematics",
"Calculus",
"Autonomous Differential Equations"
]
}
</post_analysis>
