Question

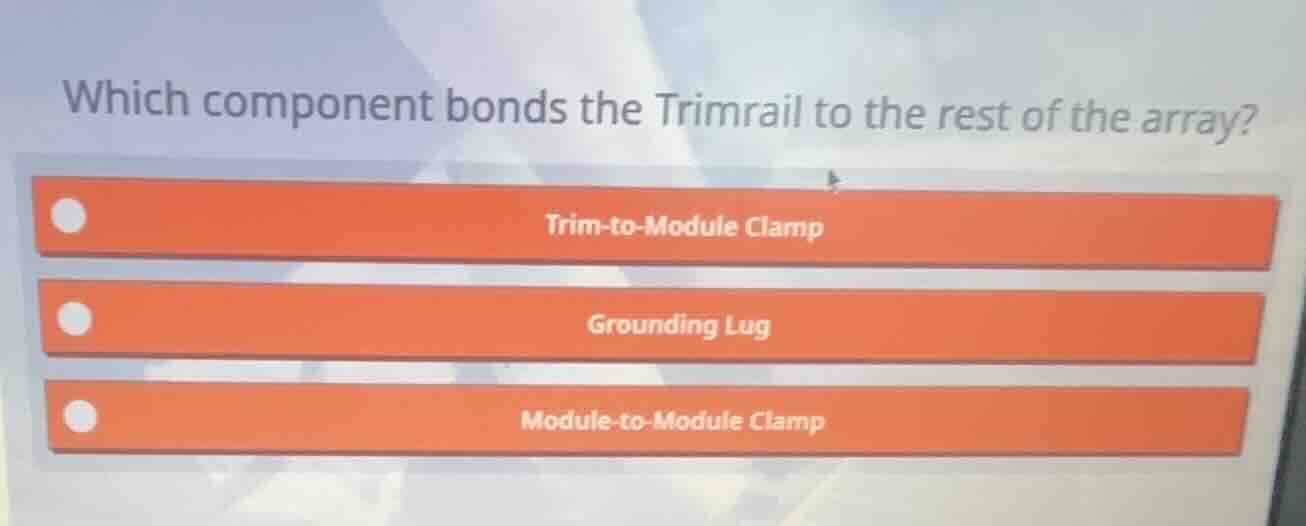

which component bonds the trimrail to the rest of the array?

• trim-to-module clamp
• grounding lug
• module-to-module clamp

Explanation:

🆕 New Concept Discovered: Solar Mounting and Grounding
Connecting and electrically bonding structural components.

Step 1: Understand the function of "bonding" in solar arrays

In solar photovoltaic (PV) installations, "bonding" refers to joining metal parts together to form an electrically conductive path. This ensures electrical continuity and safely conducts any ground-fault current.

The question asks which component specifically bonds the Trimrail (an aesthetic or structural front trim/skirt) to the rest of the solar array (the PV modules).

Step 2: Evaluate the options

• Trim-to-Module Clamp: This clamp is designed specifically to attach and electrically bond the Trimrail directly to the frames of the adjacent solar modules.
• Grounding Lug: This is used to connect the entire system's grounding copper wire to a rail or frame, rather than bonding the Trimrail specifically to the modules.
• Module-to-Module Clamp: This is used to secure and bond two adjacent solar modules to each other, not the Trimrail.

Therefore, the Trim-to-Module Clamp is the correct component.

Answer:

Trim-to-Module Clamp
