Question

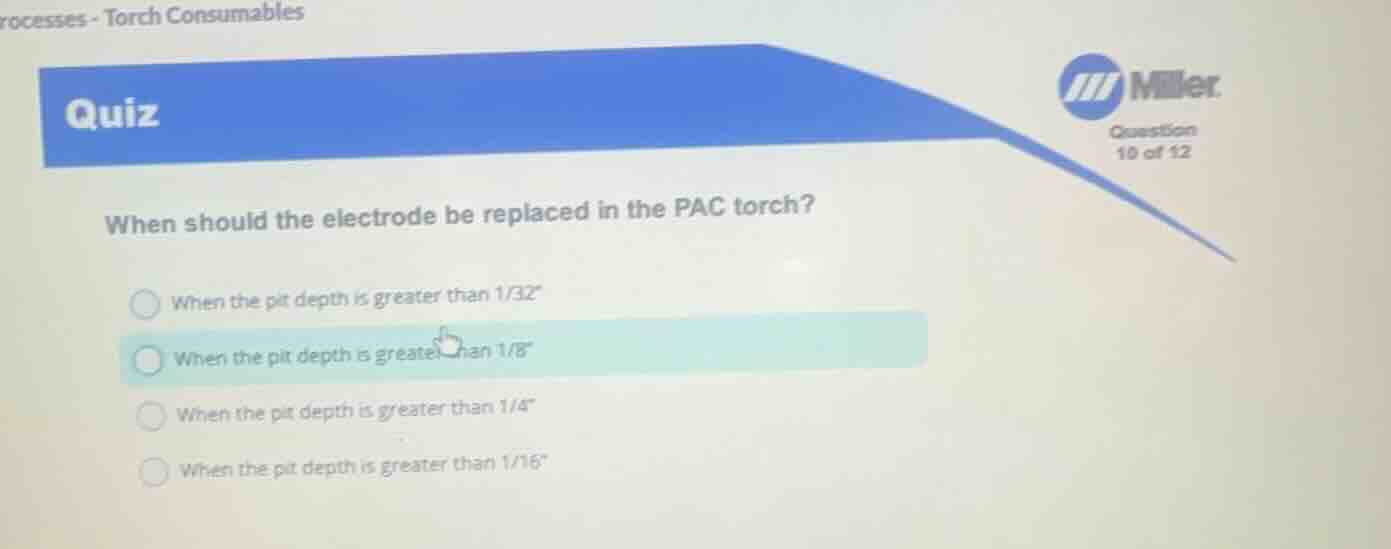

when should the electrode be replaced in the pac torch?

• when the pit depth is greater than 1/32\
• when the pit depth is greater than 1/8\
• when the pit depth is greater than 1/4\
• when the pit depth is greater than 1/16\

Explanation:

Identify the consumable component and wear criteria

The question asks when the electrode in a Plasma Arc Cutting (PAC) torch should be replaced. In PAC systems, the electrode contains an insert (usually hafnium for air/oxygen cutting or tungsten for nitrogen cutting) that slowly erodes during operation, forming a pit. Monitoring this pit depth is critical to maintaining cut quality and preventing catastrophic torch damage.

Determine the standard replacement threshold

According to standard manufacturer guidelines (such as those from Miller Electric or Hypertherm), a PAC electrode should be replaced when the pit depth in the center of the electrode reaches approximately \(1/16\) of an inch (about \(1.6\text{ mm}\)). If the pit depth is allowed to exceed this threshold, the arc can become unstable, cut quality degrades, and the electrode can fail completely, potentially destroying the nozzle and torch head.

Evaluate the given options

Let's compare the standard threshold with the provided multiple-choice options:

• Option 1: "When the pit depth is greater than 1/32\"" (This is too early; some wear is normal).
• Option 2: "When the pit depth is greater than 1/8\"" (This is too deep and risks damaging the torch).
• Option 3: "When the pit depth is greater than 1/4\"" (This is far too deep and would cause severe damage).
• Option 4: "When the pit depth is greater than 1/16\"" (This matches the industry standard replacement threshold for Plasma Torch Consumables).

Answer:

• (A) When the pit depth is greater than 1/32"
• (B) When the pit depth is greater than 1/8"
• (C) When the pit depth is greater than 1/4"
• (D) When the pit depth is greater than 1/16" (Correct answer)
