Question

what is the size of the footing for the veranda posts?

select one:
a. 450 square x 900mm high
b. 450 square x 200 high
c. 125 x 125mm
d. 500 square x 500high

Explanation:

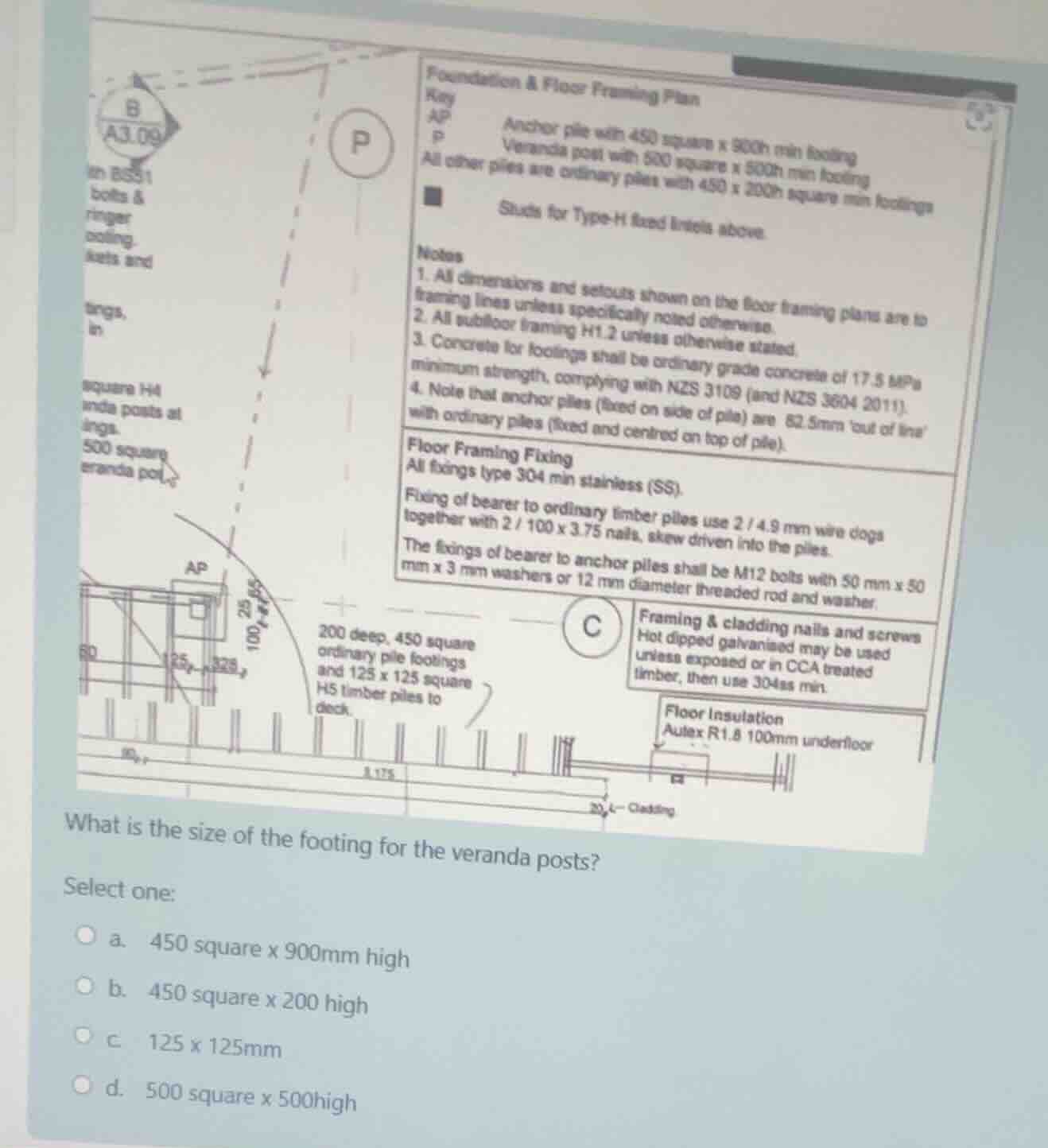

Locate the key on the plan

Using the Information Extraction and Construction Document Interpretation knowledge points:

• We look at the "Foundation & Floor Framing Plan" key at the top right of the drawing.
• The key defines the symbol P as: "Veranda post with 500 square x 500h min footing".

Match with the multiple-choice options

Using the Information Extraction knowledge point:

• Option (a) is "450 square x 900mm high" (corresponds to AP, Anchor pile).
• Option (b) is "450 square x 200 high" (corresponds to ordinary piles).
• Option (c) is "125 x 125mm" (corresponds to the timber pile size).
• Option (d) is "500 square x 500high" (corresponds to P, Veranda post footing).
• Therefore, option (d) is the correct match.

Answer:

• a. 450 square x 900mm high
• b. 450 square x 200 high
• c. 125 x 125mm
• d. 500 square x 500high (Correct answer)
