Question

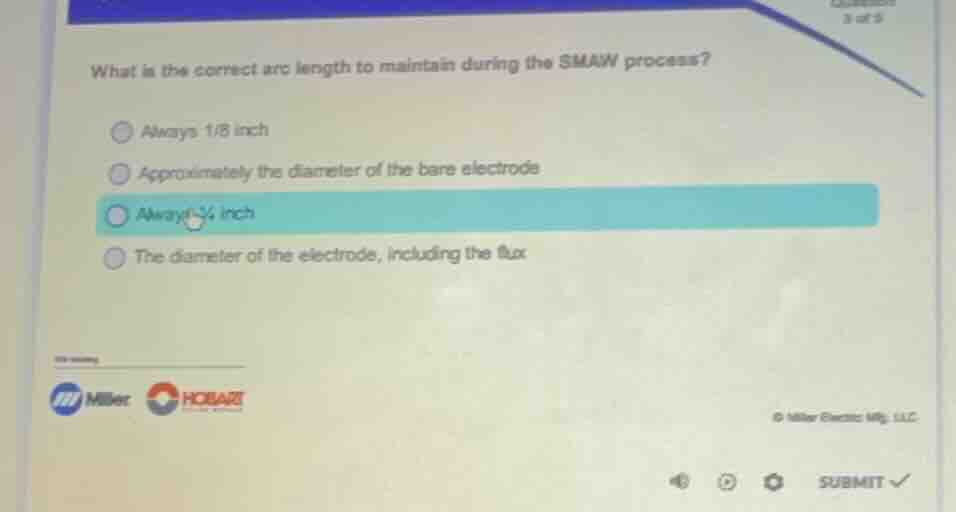

what is the correct arc length to maintain during the smaw process?

always 1/8 inch
approximately the diameter of the bare electrode
always 1/4 inch
the diameter of the electrode, including the flux

Explanation:

Identify the core question

The question asks for the correct arc length to maintain during the Shielded Metal Arc Welding (SMAW) process.

Apply the arc length rule

Using the Arc Length Rule knowledge point
As a general rule of thumb for SMAW, the correct arc length is approximately equal to the diameter of the bare metal core of the electrode.

Evaluate the options

• "Always 1/8 inch": Incorrect, because electrode diameters vary.
• "Approximately the diameter of the bare electrode": Correct, as it scales with the electrode size.
• "Always 1/4 inch": Incorrect, too long for standard electrodes and causes instability.
• "The diameter of the electrode, including the flux": Incorrect, the flux coating makes the total diameter too large for a proper arc length.

Answer:

• (A) Always 1/8 inch
• (B) Approximately the diameter of the bare electrode (Correct answer)
• (C) Always 1/4 inch
• (D) The diameter of the electrode, including the flux
