Question

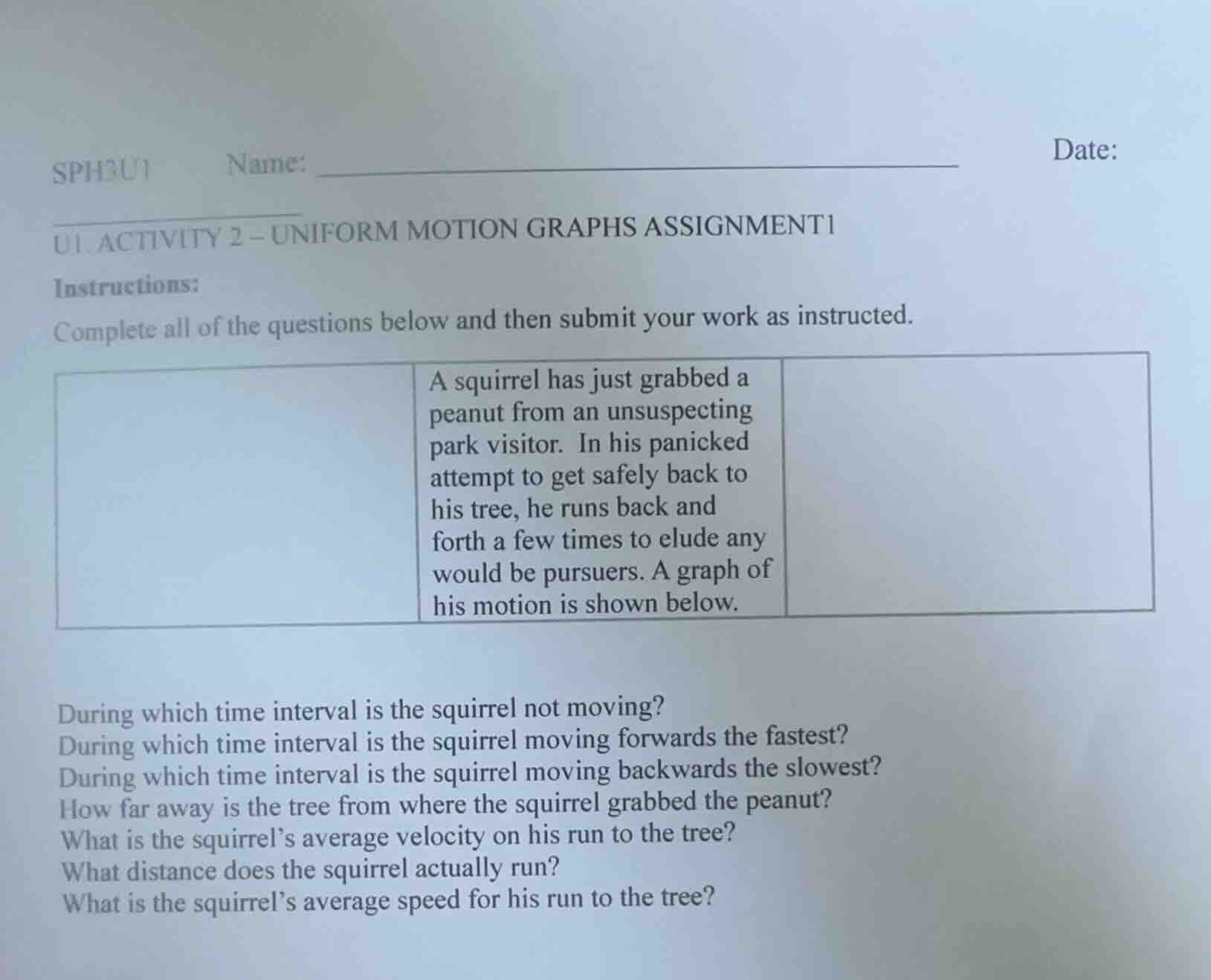

Question was provided via image upload.

Explanation:

Identify the missing information

The provided image contains a set of questions about a squirrel's motion based on a graph: "A graph of his motion is shown below." However, the graph itself is completely missing or cut off from the bottom of the image.

Analyze the questions

The questions ask for specific values and intervals from the missing graph:

1. During which time interval is the squirrel not moving?
2. During which time interval is the squirrel moving forwards the fastest?
3. During which time interval is the squirrel moving backwards the slowest?
4. How far away is the tree from where the squirrel grabbed the peanut?
5. What is the squirrel's average velocity on his run to the tree?
6. What distance does the squirrel actually run?
7. What is the squirrel's average speed for his run to the tree?

Without the position-time graph showing the squirrel's position over time, these specific numerical values and intervals cannot be determined.

Explain the concepts needed to solve

To help you solve this once you have the graph, we can define how to find each answer using Average Velocity and Average Speed:

• Not moving: Look for a horizontal line segment on a position-time graph (where slope is zero).
• Moving forwards the fastest: Look for the steepest positive slope (steepest line going upwards).
• Moving backwards the slowest: Look for the gentlest negative slope (line going downwards with the smallest non-zero steepness).
• Distance to the tree: Find the final position of the squirrel at the tree relative to its starting position (where it grabbed the peanut, usually \(d = 0\)).
• Average velocity: Using the Average Velocity concept, calculate the total displacement divided by the total time:

$$ v_{\text{avg}} = \frac{\Delta \vec{d}}{\Delta t} = \frac{\vec{d}_{\text{final}} - \vec{d}_{\text{initial}}}{t_{\text{final}} - t_{\text{initial}}} $$

• Total distance: Sum the absolute values of all individual displacements (every segment's path length).
• Average speed: Using the Average Speed concept, calculate the total distance traveled divided by the total time:

$$ \text{speed}_{\text{avg}} = \frac{\text{total distance}}{\Delta t} $$

Answer:

The graph required to answer these questions is missing from the image.

To solve these questions once you have the graph:

1. Not moving: Identify the time interval where the line is horizontal (slope = 0).
2. Moving forwards fastest: Find the interval with the steepest upward slope.
3. Moving backwards slowest: Find the interval with the shallowest downward slope.
4. Distance to the tree: Read the position value corresponding to the tree on the vertical axis.
5. Average velocity: Calculate \(\frac{\text{final position} - \text{initial position}}{\text{total time}}\).
6. Total distance: Add up the lengths of all forward and backward movements.
7. Average speed: Calculate \(\frac{\text{total distance}}{\text{total time}}\).

Please upload a complete image showing the motion graph, and I will gladly calculate all the exact values for you!
