Question

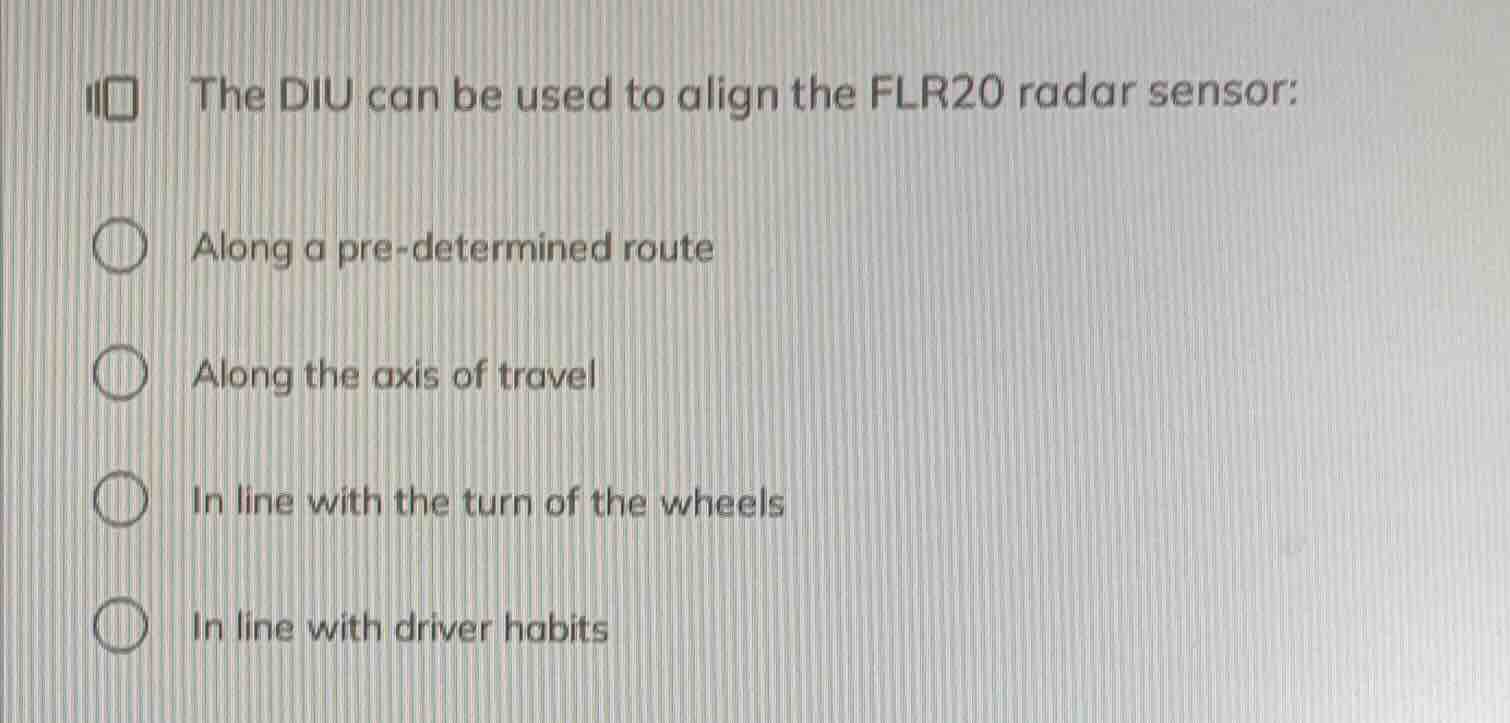

the diu can be used to align the flr20 radar sensor:

along a pre-determined route
along the axis of travel
in line with the turn of the wheels
in line with driver habits

Explanation:

Identify the function of the DIU

The Diagnostic Interface Unit (DIU) is used in automotive service to calibrate and align advanced driver assistance systems (ADAS) sensors, such as the FLR20 radar sensor.

Determine the alignment reference

Radar sensors must be aligned relative to the vehicle's actual direction of movement to function correctly. This direction is defined as the geometric thrust line or the axis of travel.

Evaluate the given options

• "Along a pre-determined route": Incorrect, as alignment is vehicle-specific, not route-specific.
• "Along the axis of travel": Correct, because radar sensors must align with the vehicle's direction of travel (thrust axis) to accurately detect objects ahead.
• "In line with the turn of the wheels": Incorrect, as steering angle changes constantly and does not represent the static zero-point calibration axis.
• "In line with driver habits": Incorrect, as driver habits do not dictate physical sensor calibration parameters.

Answer:

• Along a pre-determined route
• Along the axis of travel (Correct answer)
• In line with the turn of the wheels
• In line with driver habits
