   science ae 8 b (s26sc8) #8208 / module 7: electricity and magnetism

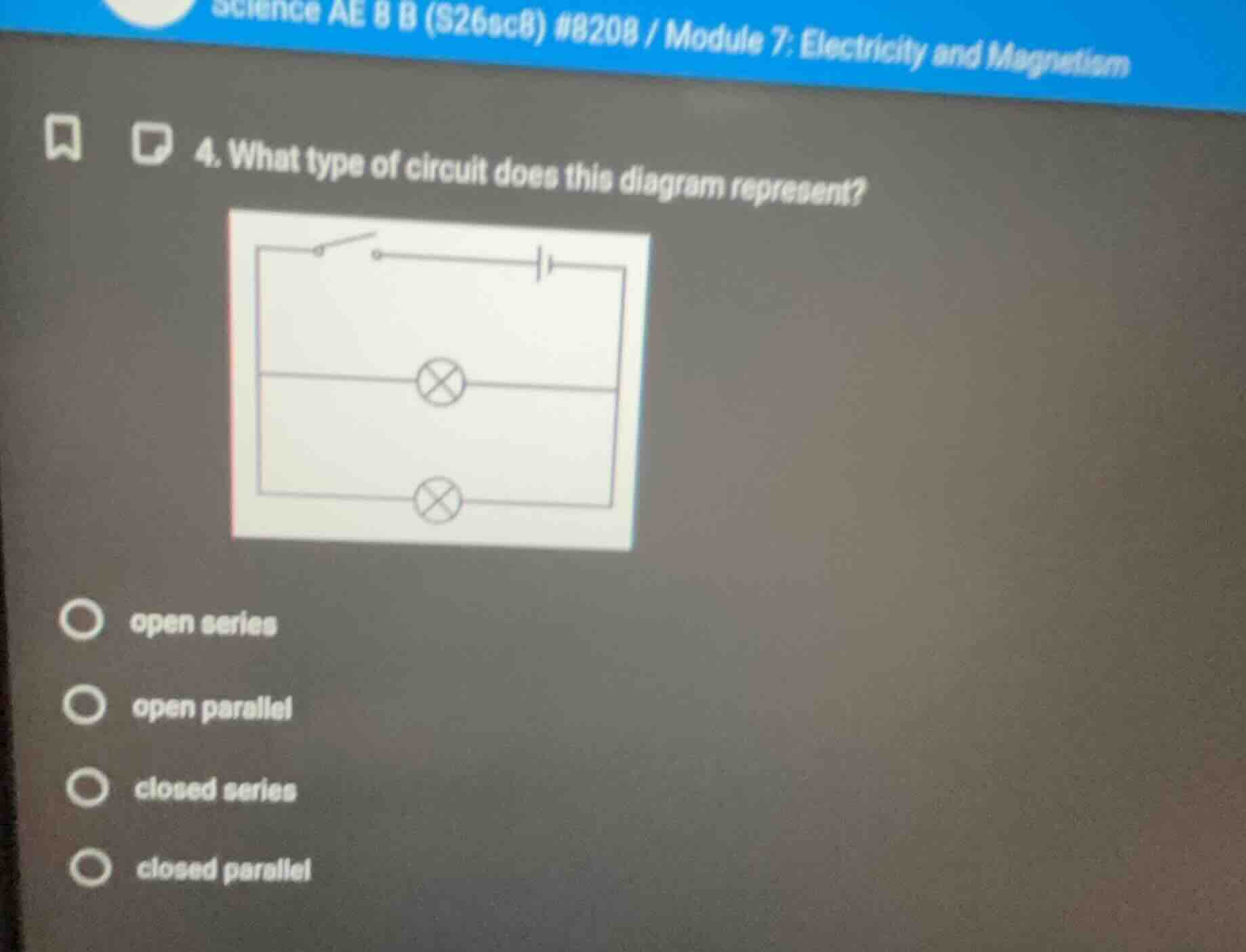

   1. what type of circuit does this diagram represent?

   open series
   open parallel
   closed series
   closed parallel

2. Brief Explanations
   1. First, identify the circuit configuration: the two light bulbs are connected across the same two points of the power source, so this is a parallel circuit.
   2. Next, check the switch: the switch is in the open position, which breaks the main path of the circuit, so this is an open circuit.
   3. Combine these observations: the circuit is an open parallel circuit.
3. Final answer

   open parallel

Answer
