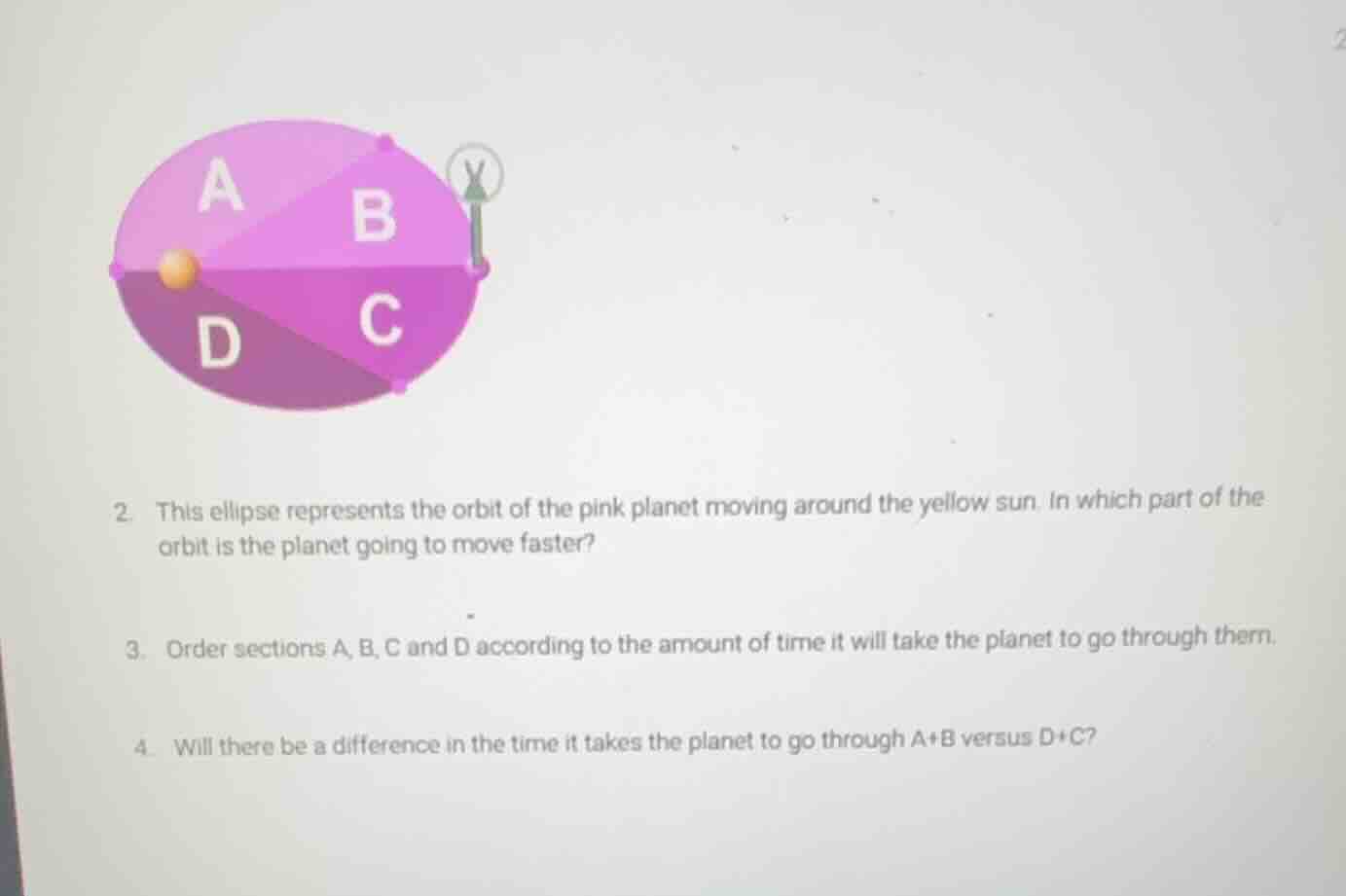

2. this ellipse represents the orbit of the pink planet moving around the yellow sun. in which part of the orbit is the planet going to move faster?

3. order sections a, b, c and d according to the amount of time it will take the planet to go through them.

4. will there be a difference in the time it takes the planet to go through a+b versus d+c?

Question

2. this ellipse represents the orbit of the pink planet moving around the yellow sun. in which part of the orbit is the planet going to move faster?

3. order sections a, b, c and d according to the amount of time it will take the planet to go through them.

4. will there be a difference in the time it takes the planet to go through a+b versus d+c?

Accepted Answer

{ "quality": "clear", "question_count": 3, "skills_matched": [ "step_cot", "explain_then_answer", "quick" ], "needs_drawing": false, "concepts_used": [ "Kepler's Second Law", "Elliptical Orbits" ], "new_concepts": [], "current_concepts": [ "Kepler's Second Law", "Elliptical Orbits" ] } ## Determine the region of maximum orbital speed $$ \begin{aligned} &r_{\text{perihelion}} < r_{\text{aphelion}} \ &v_{\text{perihelion}} > v_{\text{aphelion}} \ &\text{The sun is located at the focus in region D and A.} \ &\text{Therefore, the planet moves fastest in region D (closest to the sun).} \end{aligned} $$ ## Compare the areas of sectors A, B, C, and D to order travel times $$ \begin{aligned} &\text{By Kepler's Second Law: } \Delta t \propto \text{Area} \ &\text{Visual area comparison: } \text{Area}(C) > \text{Area}(A) > \text{Area}(B) > \text{Area}(D) \ &t_C > t_A > t_B > t_D \end{aligned} $$ ## Compare total areas of upper and lower halves $$ \begin{aligned} &\text{Area}(A + B) = \text{Area of the upper semi-ellipse} \ &\text{Area}(D + C) = \text{Area of the lower semi-ellipse} \ &\text{Area}(A + B) = \text{Area}(D + C) \ &t_{A+B} = t_{D+C} \end{aligned} $$ ## Question 2 The planet is going to move faster in part **D** (specifically near the perihelion, which is closest to the sun). ## Question 3 From longest time to shortest time: **C, A, B, D** (or $t_C > t_A > t_B > t_D$). ## Question 4 **No**, there will not be a difference. The combined area of sectors A+B is equal to the combined area of sectors D+C (each represents exactly half of the ellipse), so it takes the same amount of time to travel through both halves. { "subject": "Natural Science", "question_type": "Multi-part", "knowledge_point": [ "Natural Science", "Physics", "Kepler's Laws of Planetary Motion" ] }

Sovi.AI - AI Math Tutor

QUESTION IMAGE

Question

Explanation:

Determine the region of maximum orbital speed

Compare the areas of sectors A, B, C, and D to order travel times

Compare total areas of upper and lower halves

Answer:

Question 2

Question 3

Question 4
