Question

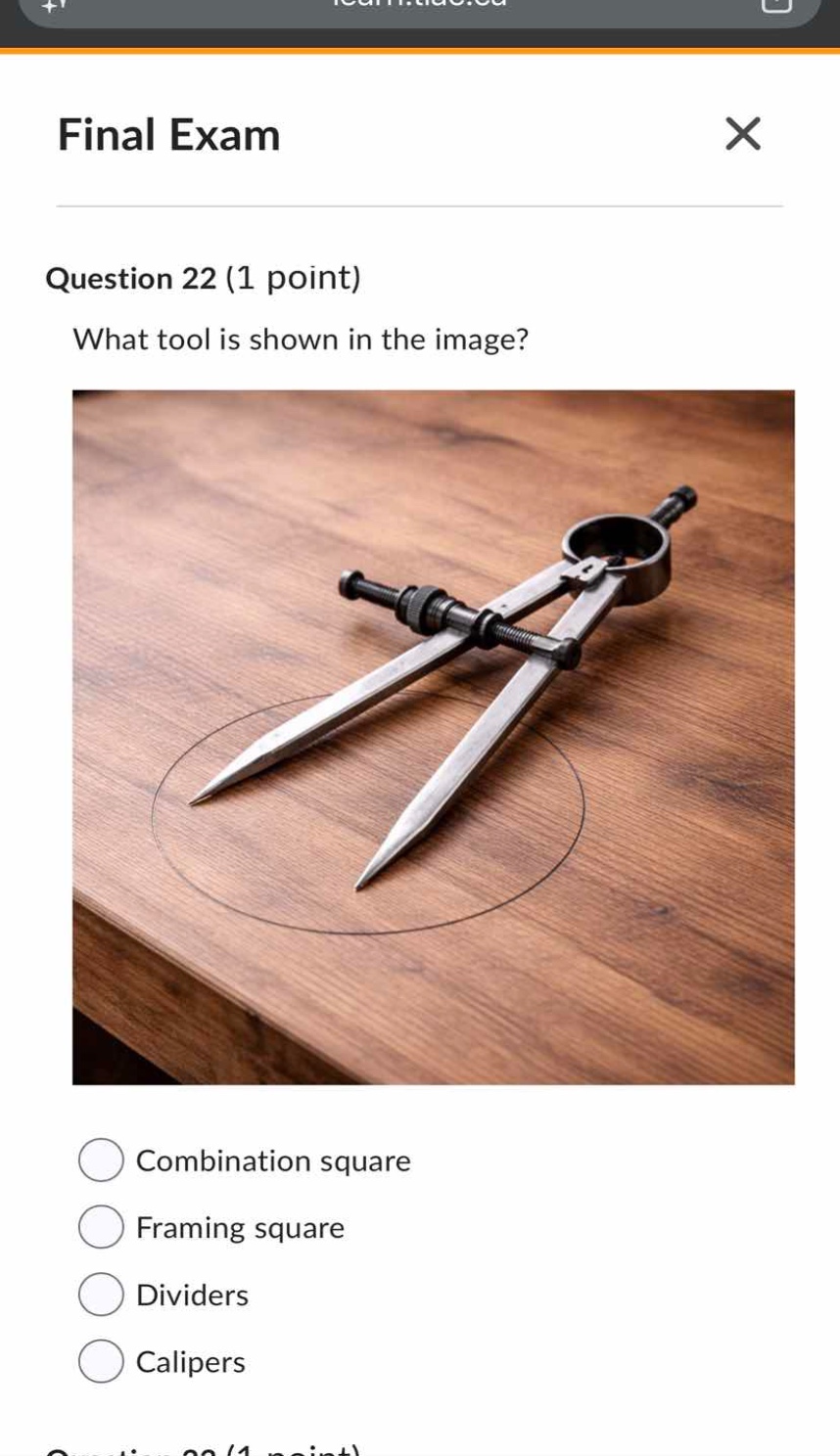

question 22 (1 point)
what tool is shown in the image?

combination square
framing square
dividers
calipers

Explanation:

Identify the tool's physical features

The tool has two straight, sharp metal legs connected by a spring joint at the top, adjustable via a threaded rod and knurled nut.

Analyze the function shown in the image

The tool is shown scribing a precise circle on a wooden surface, with both legs ending in sharp points.

Compare with the given options

• Combination square and framing square are right-angle measuring tools.
• Calipers are used to measure internal or external dimensions and typically have curved jaws.
• Dividers have two sharp points used for marking circles, arcs, or transferring distances.

Answer:

• Combination square
• Framing square
• Dividers (Correct answer)
• Calipers
